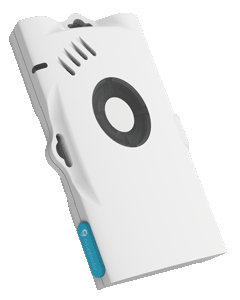

Abeeway Smart Badge ATEX 2

Simple ID Card? More. A powerful worker safety tool.

The Abeeway Smart Badge is a portable multi-mode tracker in ID card format with embedded sensors combining multi-constellation GNSS, Low-power GPS, Wi-Fi Sniffer, BLE, and LoRaWAN® TDoA geolocation technologies, supporting seamless outdoor and indoor geolocation, and pressure (ATEX Zone 2 and 22 Certified).

$119.14
(VAT excluded)
In stock
Usually delivered in 15 working days
Commercially available
This product is already in mass production. Production batches are in route or stock is available. All certifications for the regional areas where the products are sold are obtained from competent institutions.

Key features highlights :

A state-of-the-art tracker for workforce safety monitoring

  • Multi-mode tracking for employees, workers, visitors.
  • Contact back-tracing, proximity detection for sanitary policy enforcement.
  • SOS panic alarm for indoor and outdoor lone workers.
  • Danger zones or restricted areas access notifications
  • Automated attendance monitoring and zoning.
  • Safety evacuation monitoring.
  • Location heatmaps, e.g. for optimization of supervisor/worker ratio in large construction or industrial sites.

Ubiquitous geolocation, minimal power consumption

Always know the location of your mobile workers and personnel to reduce risks and injuries! With Abeeway’s Smart Badge precise tracking abilities, locate your workers and employees no matter where they are, whether indoors or outdoors. Our intelligent tracker uses ultra-low-power LoRaWANconnectivity and adapts to the environment to choose the best location technology to run on in its present situation, thereby optimizing battery life.

Longer battery life, lower costs

Unlike other trackers that work on power-hungry cellular networks, our Smart Badge benefits from the power-efficient LoRaWAN connectivity. With a rechargeable 1.3 Ah battery, ithigh battery longevity lets it function for more than a year on a single charge, and 90 days with 60 outdoor/indoor positions per day.  Best of all, it doesn’t need a SIM card to work saving your budget from costly subscriptions

Light, handy, and multi-purpose

Compact card form ideal for personal usage: can be neck-worn with a lanyard, attached to clothes, or easily fit in a pocket. The Smart Badge may be light, but it showcases a multitude of functionalities with its user interface: the buzzer with 80dB high volume, multi-usage SOS button, and micro USB connector for charging. Housed in an IP65 water-resistant casing, it has embedded sensors for temperature, motion, and pressure (ATEX Zone 2 and 22 Certified).

Operational flexibility, adaptability, and configurability

The Smart Badge can monitor motion in real-time and receive position alerts at the start, duration, and end of the motion, also when the device is entering or leaving defined zones – geofencing. With permanent tracking, you can also get live locations at regular intervals or when needed with a fix on-demand.  The Smart Badge is certified by the LoRa Alliance and ready to be deployed worldwide: EU868, US915, AS923.



Description :

Sleek, smart, made for people



The Abeeway Smart Badge is a portable multi-mode tracker in ID card format with embedded sensors combining multi-constellation GNSS, Low-power GPS, Wi-Fi Sniffer, BLE, and LoRaWAN® TDoA geolocation technologies, supporting seamless outdoor and indoor geolocation.







This device is ideal for contact back-tracing, zone notification, and monitoring of workforce safety and security. Simple to use, a single button gives you access to the numerous functionalities you may personalize for your needs, e.g. as a Panic/SOS Button. A local zoning feature can signal danger zones with a 96 dBa buzzer. It has a robust, industrial-grade magnetic connector for recharging the battery, and an optional multi-slot charging/upgrade dock.



Multiple operating modes

• Motion Tracking: High-resolution position when motion is detected

• Permanent tracking: Periodic interval position

• Fix on demand: Obtain tracker position when needed (very low power operating mode)

• Activity tracking: Monitor activity rate with embedded sensors



Geolocation technologies

• Multi-constellation GNSS/GPS

• Low power GPS

• Wi-Fi indoor and outdoor APSSID sniffing

• BLE: Sniffing and beaconing



Key hardware specifications

• User interface: 96 dBa buzzer, bicolor LEDs, button

• Temperature monitoring

• LoRaWAN® Class A radio

• High-Pressure Water-spray resistant enclosure (IP65)

• Magnetic USB connector for Rechargeable battery

• Large 1.3Ah battery

• Firmware Upgrade

ATEX 2 (Certified for explosive atmosphere)

• Holder to slide ID or RFID Card



Additional Features

• Geofencing zone detection

• Edge computing for proximity detection and exposure assessment

• BLE scan function for an inventory of tools and accessories

• Indoor BLE/WiFi fingerprinting with HERE Tracking (requires subscription)

• Indoor BLE based geolocation with Quuppa Intelligent Location (requires Quuppa infrastructure)

• BLE based safe/hazard zone detection

Specifications :
Seller Actility
Manufacturer Name Abeeway
SKU DEABE-31X-21XXX-EX2
Product Attributes Geolocation
Product Capabilities Action button / Push button, Distance / level sensor
LoRa Class Class A
Other Protocol Bluetooth Low
Use Case Asset tracking (network based), Emergency Button, Worker geolocation
Power Supply Rechargeable battery
Battery specification (Wh) 1,3 Ah
Antenna Integrated
RF transceiver SX1261
Interfaces Bluetooth, USB
Internal sensors utility Temperature, Mouvement
Operating Temperature (min to max) -10°C to 55°C
Depth (cm) 11
Width (cm) 65
Height (cm) 90
Technical datasheet

Abeeway Smart Badge Product Page

Lead-time if backordered (in working days) 5
Lead-time if in stock (in working days) 15
Seller conditions Seller commercial condition
Seller shipping condition
