Actility - IoT Indoor Air Quality Solution

We spend up to 90% of our time inside, but how regularly do we think about the quality of the air we’re breathing? Unlike outdoor air, indoor air tends to be continuously recycled, causing it to trap pollutants and allow them to build up within these confined spaces. Actility Indoor air quality (IAQ) solution refers to monitoring the environmental characteristics inside buildings that may affect human health, comfort, or work performance. It allows monitoring in real-time the concentration of CO2 to create a safer and healthier indoor environment, protect employees, workers or students, and meet air quality regulations levels.​

Powered by Zenner, Actility ThingPark, and Datacake.

For detailed documentation and step-by-step setup instructions for this kit, refer to the Product Information/Technical documents section below.

$387.29
(VAT excluded)
In stock
Usually delivered in 15-20 days working days
Commercially available
This product is already in mass production. Production batches are in route or stock is available. All certifications for the regional areas where the products are sold are obtained from competent institutions.

Key features highlights :

Optimization of air quality is essential for more healthy and productive working conditions.

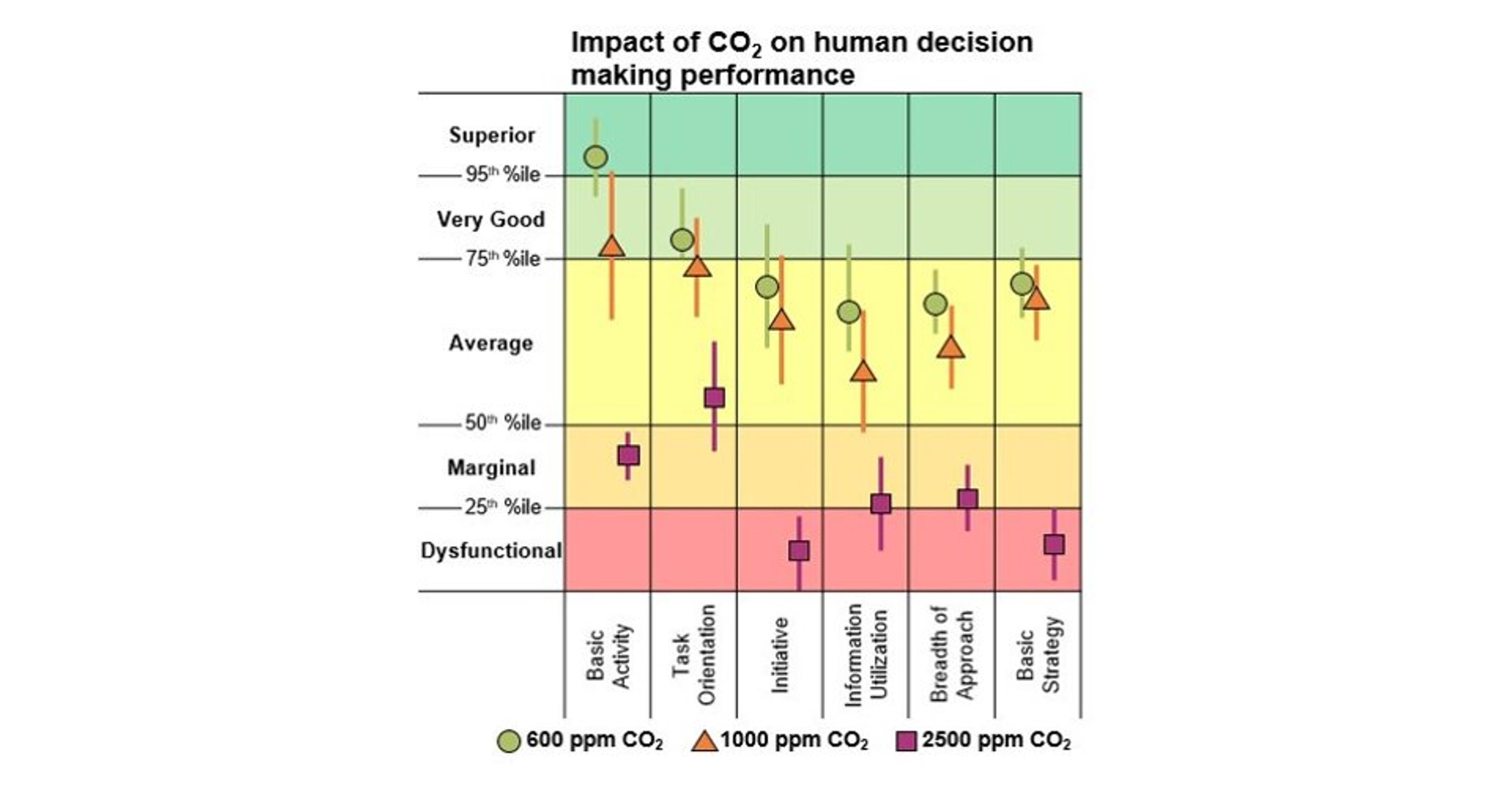

CO2 concentration is a key indicator of air quality. The higher the CO2 value in a building, the less comfortable it becomes for the people inside. In poorly ventilated rooms, the CO2 concentration increases rapidly.

The EU Royal Decree of 2 May 2019 well-being code at work about indoor air quality, establish that the employer must take the necessary technical and/or organizational measures to ensure that the concentration of CO2 in the workplace is generally less than 900 ppm.

The Indoor Air Quality Solution:

  • Measures the indoor concentration of CO2 in an automatic manner and in real-time.​
  • It is an intuitive, precise, and plug-and-play monitoring solution.​
  • Interacts with humans and machines to understand the customer environment, context, and data qualifications.

Our starter kit includes:


1 x Zenner CO2 Indicator L868 ID A Sensor (included)

1 x Integrated rechargeable device battery

1 x USB-A to USB-C cable for Zenner device (included)

A standard USB-A power supply unit 5V is needed and not provided as part of the kit

1 x Browan Pico NEXT LTE Gateway (included) pre-installed and configured

3 x Months subscription to Datacake application up to 2 devices

3 x Months subscription to ThingPark Enterprise SaaS service



Options


1 x Milesight UG65 Semi-Industrial LoRaWAN® Gateway

1 hr. of technical assistance service for the kit installation

Description :

Enable an Indoor Air Quality solution to create better well-being, and healthier classrooms, offices, and societies.


The Indoor Air Quality solution is a complete offer dedicated to the monitoring and analysis of Indoor Air Quality, comfort, and ventilation in your buildings.

Zenner CO2 Indicator

A compact indoor EU868 LoRaWAN® radio sensor for measuring the CO2 content of indoor air. This product uses the photoacoustic principle to detect the CO2 concentration (ppm) in real-time, enabling more efficient ventilation behavior and faster response time.

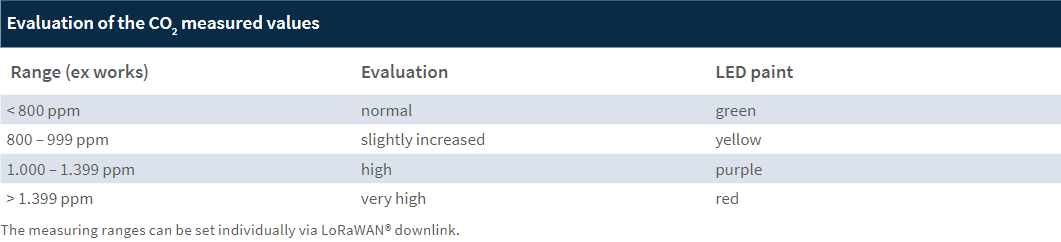

With the integrated display and the color-changing LED display, the sensor always provides real-time information about the current CO2 value, the battery level, and the status of the LoRaWAN® connection.

It can be placed on any flat surface. In addition, the device can also be used "stand-alone", without a LoRaWAN® connection, e.g. at a meeting outside the company, when visiting a customer or a restaurant outside the range of the LoRaWAN® network.
However, without a LoRaWAN® connection, no remote monitoring or alarm can take place.

The device can be operated with the integrated rechargeable battery or with a standard 5V USB-A power supply unit. A standard USB-A power supply unit 5V is needed and not provided as part of the kit.

Zenner CO2 Indicator L868 ID A for LoRaWAN®

Browan Pico Next Indoor Gateway

The Gemtek Pico NEXT LTE is an 8-channel indoor LoRaWAN® gateway suitable for small business or private area use cases like parking spaces, exhibition centers, campuses, enterprises, and more. It includes various Internet connections of Ethernet and LTE backhaul (SIM card not provided).

Milesight UG65 Semi-Industrial LoRaWAN® Gateway

The UG65 is a robust IP65 Rating, 8-channel indoor LoRaWAN® gateway. Adopting the SX1302 LoRa chip and high-performance quad-core CPU, UG65 supports connections with more than 2000 devices. UG65 has a line of sight up to 15 km and can cover about 2km in urbanized environments, which is ideally suited to smart offices, smart buildings, and many other indoor applications.

Low-Power Wide-Area Networks for the Internet of Things Leader.

ThingPark Enterprise is the leading LoRaWAN private networking solution that streamlines the digitalization of your business processes by connecting your most valuable assets with efficiency.

Deploying ThingPark Enterprise, you will benefit from a dependable, secure, and scalable private LoRaWAN connectivity infrastructure to enable a wide variety of IoT use cases.

ThingPark Enterprise streamlines IoT network operations,  providing enterprises with a proficient UX to easily build a multi-gateway LoRaWAN network and feed data to IoT applications. ThingPark Enterprise dashboards provide key operational insights & alarm management.

Your LPWAN gateways and devices are managed by a fully geo-redundant platform with 24/7 supervision.

Datacake Application

Datacake is a multi-purpose, low-code IoT platform that requires no programming skills and minimal time to create custom IoT applications that can be brought into a white-label IoT solution at the push of a button.

  • Provides an easy-to-use graphical editor for creating dashboards.
  • Rules for alerting or triggering downlinks (automation).
  • Generate reports at regular intervals (defined by the user) and send them to various email addresses
  • Users of the Datacake platform can create any number of workspaces and independently create or move devices between them.
  • White Label makes Datacake invisible to customers. They access the portal through their domain and they only see their logo.
  • Powerful user administration with rights management via an easy-to-use web interface.
Specifications :
Seller Actility
SKU KITACT1010EU
Product Capabilities Carbon dioxide (CO₂) Sensor
LoRa Class Class A
Solution Represented Home, Smart Building
Use Case Air quality monitoring, Work site productivity optimization
Battery specification (Wh) 2.000 mAh
Power supply 5V⎓ 1A
RF power (dBm) max. 14 dBm
Operating Temperature (min to max) 0 ~ 40 °C
Lead-time if in Stock (in working days) 15-20 days
Technical documents




Seller conditions Seller commercial condition
Seller shipping condition
