Elsys - ERS CO2

ERS CO2 is an indoor climate sensor for LoRaWAN®. This sensor measures CO2 levels, temperature, humidity, light intensity, and motion.

(VAT excluded)
In stock
Commercially available
This product is already in mass production. Production batches are in route or stock is available. All certifications for the regional areas where the products are sold are obtained from competent institutions.

Key features highlights :

  • Compatible with LoRaWAN® specification 1.0.3
  • Measures ambient CO2 levels, temperature, humidity, luminosity
  • Detects motion using a passive IR sensor
  • Easy installation and configuration
  • It may be installed on a wall or any surface
  • Battery-powered
  • Long-range communication
  • Configurable over NFC
  • Configurable over the air
  • Ten years of battery life
  • CE Approved and RoHS compliant

Description :

The Elsys ERS CO2 is an advanced indoor climate sensor for LoRaWAN® wireless network. The sensor measures CO2 levels, temperature, humidity, light intensity, and motion. The ERS CO2 is a battery-powered device and is designed to be wall-mounted. The motion sensor can be used for presence monitoring systems. The ERS CO2 is equipped with NFC (Near Field Communication) and can easily be configured from a smartphone.

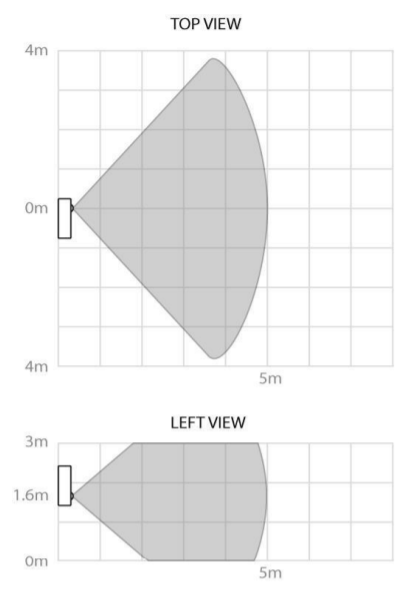

Passive Infrared (PIR) Lens

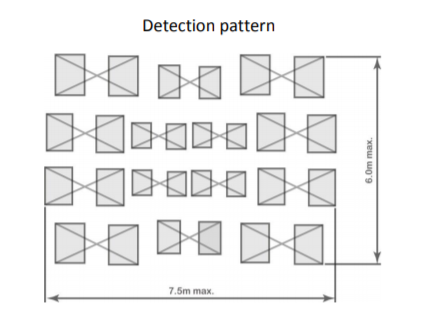

Motion is detected when a person walks from one angle (beam) to another.

Device Features

  • CO2 (Calibrated 2k ppm, extended 10k ppm), Temperature, Humidity, Light, and Motion detection (PIR).​
  • Users can configure both sampling mode and transmission schedule.​
  • Configurable via Downlink or NFC Android cell phone application configuration.​

Typical Applications

  • Air Quality Monitoring​
  • Smart Buildings​
  • Indoor Environmental Monitoring​
  • Room Occupancy

Examples of installation environments

  • Classrooms, offices, and meeting rooms​
  • Warehouse Storage and Logistics

Elsys ERS CO2 Motion PIR

Specifications :
Seller Actility
Manufacturer Name Elsys
Product Attributes Metering
Product Capabilities Air humidity sensor, Air temperature sensor, Carbon dioxide (CO₂) Sensor, Light sensor, Presence & Occupancy sensor
Use Case Air quality monitoring, Lighting management, Work site productivity optimization
Solution Represented Smart Building, Smart Metering
Power Supply Replaceable battery
Battery specification (Wh) 2 x 3.6V AA Lithium Batteries
Internal sensors utility Humidity, Temperature, Mouvement, Other
Operating Temperature (min to max) 0°C to 50 °C
Depth (cm) 27
Width (cm) 86
Height (cm) 86
Technical datasheet

Elsys - ERS CO2 - Datasheet

Technical Documents
Seller conditions Seller commercial condition
Seller shipping condition
