Pepperl+Fuchs - Wilsen Sonic Level

Autonomous wireless sensor combined with unique ultrasonic expertise—your competitive advantage for intelligent business processes. It is used to remotely monitor fill levels in containers, tanks, and silos. As well as monitor water levels of rivers, lakes, and flood basins.

$335.36
(VAT excluded)
In stock
Commercially available
This product is already in mass production. Production batches are in route or stock is available. All certifications for the regional areas where the products are sold are obtained from competent institutions.

Key features highlights :

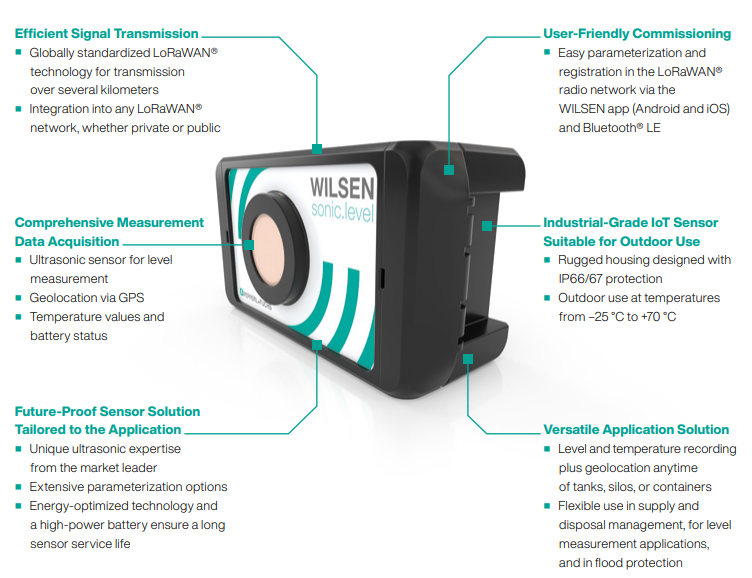

Multisensor

The sensor transmits more than just filling levels. GPS data from the sensor allows assets such as containers to be tracked, while other information such as temperature readings ​​and battery charge status enable to benefit from predictive maintenance capabilities.

Two different sensor configurations are available:

A WILSEN.sonic.level UCC2500 model for distances up to 2,5m through a wireless ultrasonic sensor.

WILSEN.sonic.level UCC4000 model for distances up to 4m through a wireless ultrasonic sensor.

Industrial Use

Its suitability for industrial use sets the WILSEN.sonic.level apart from other IoT sensors—it has a rugged housing with IP66/67 protection and can also be used outdoors at temperatures of -25 °C … +70 °C.

Comprehensive measurement data acquisition

  • Ultrasonic sensor for level measurement
  • Geolocation via GPS
  • Temperature values and
    battery status



Description :

The WILSEN.sonic.level LoRaWAN, battery-operated and wireless level sensor is used primarily in smart city, logistics, farming, and environment sectors. The sensor parameters allow it to be adjusted for a diverse range of installation conditions and for detecting different materials.

Fill levels are measured at regular intervals and transmitted to operational experts internet-based applications. The measurement and transmission frequency are parameterized via a mobile application and Bluetooth interface.



WILSEN.sonic.level UCC2500 and WILSEN.sonic.level UCC4000 sensor comparison



WS-UCC2500-F406-B15-B41-01-02

WS-UCC4000-F406-B15-B41-01-02

Sensing range (ultrasonic)

150 ... 2500 mm

250 ... 4000 mm

Dead band

0 ... 150 mm

0 ... 250 mm

Resolution

10 mm

16mm



USE CASES







Specifications :
Seller Actility
SKU DEPEP2000EU
Product Attributes Metering
Product Capabilities Air temperature sensor, Geolocation
Use Case Asset tracking (network based), Liquid level monitoring, Tank level monitoring
Solution Represented Smart Agriculture, Smart Cities, Smart Metering
Battery Specification (Wh) 13000 mAh
Power Supply High capacity lithium battery 3.6 V
Internal sensors utility Humidity, Temperature
Operating Temperature (Min to Max) -25 ... 70 °C (-13 ... 158 °F)
Technical datasheet

WILSEN app for iOS https://apps.apple.com/app/wilsen/id1526832085

WILSEN app for Android https://play.google.com/store/apps/details?id=com.pepperlfuchs.wilsen

User Manual Wilsen Sonic Level UCC

Description of Payload

Datasheet Wilsen Sonic Level UCC

Activation Guide Wilsen Sonic Level UCC

Battery Manual for Wilsen UCC

Seller conditions Seller commercial condition
Seller shipping condition
